HAMAMATSU  滨松    EQ-99X-FC-S   激光驱动光源 (LDLS)

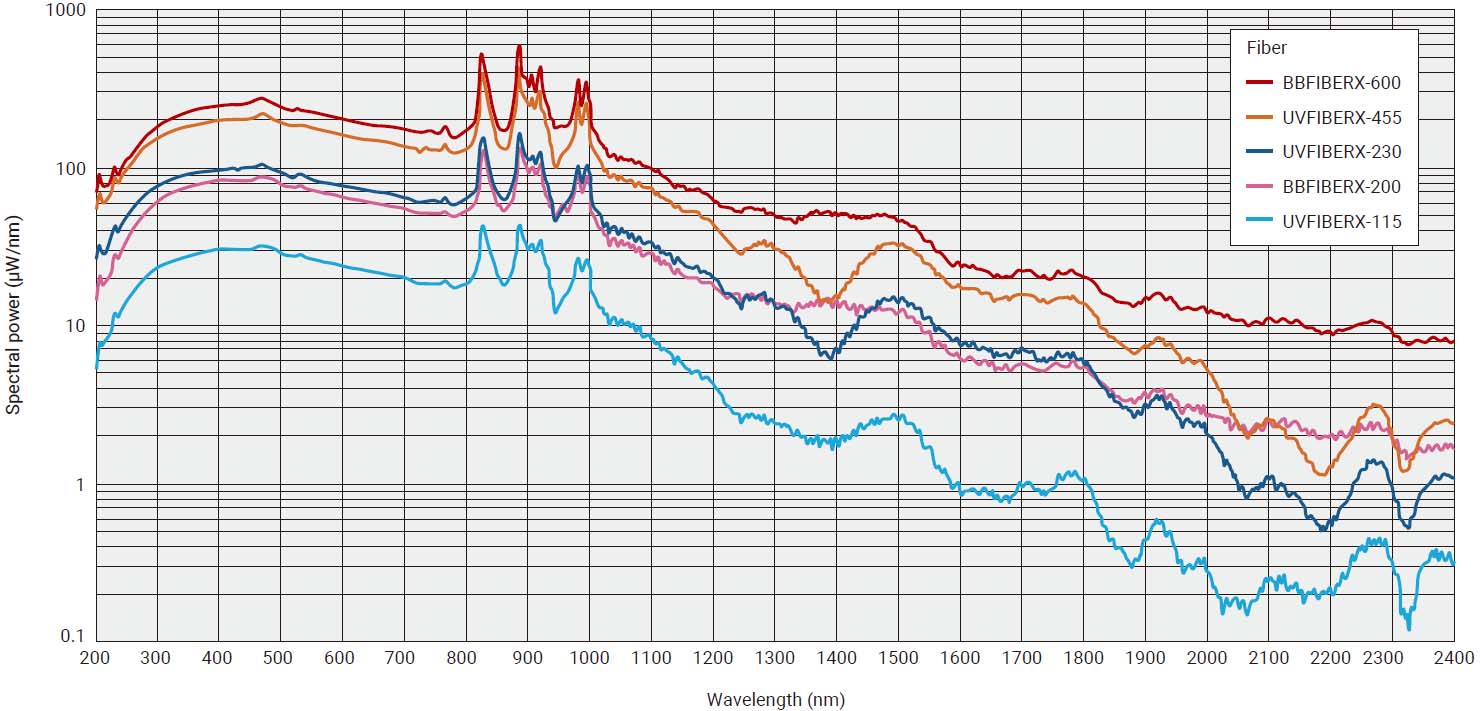

光谱功率

详细参数



Parameter Description / Value Unit
Optical interface Fiber coupled output －
Wavelength range*1 190 to 2500 nm
Plasma size (FWHM) Typ. 100 × 180 μm
Numerical aperture NA 0.22 －
Lifetime Typ. 10 000 h
Warm-up time 30 min
Laser class Class 1 －
Broadband optical power*2 95 mW
Output termination FC or SMA 905 mm
Cooling method No auxiliary cooling required －
Nitrogen purge Recommended. Grade 4.8 or higher, filtered to 5 μm. 20 psiG ±2 psiG －
Applicable standards EN 61010-1
EN 61326-1
IEC 60825-1
IEC 62471
EN 50581 		－
Device configuration*3 Lamphead, Power supply controller, Remote control, AC adapter, Necessary cables －
Power rating Input voltage (AC) 100 to 240 V
Power frequency 50 / 60 Hz
Power consumption 175 W

*1 The optical fiber should be selected according to wavelength range required for the application.

*2 Optical power from the optical fiber (UVFIBERX-230) was measured with a thermopile.

*3 The configuration is different for sales to Japan. Please contact us for details.



Fiber specifications

Optical fibers can be selected with the following core diameters, lengths and connector terminations.

Parameter UV type Broadband type Unit
Type UV FIBERX BB FIBERX －
Recommended wavelength range 190 to 900 350 to 2500*4 nm
Broadband optical power 30 95 195 25 80 180 215 mW
Core size 115 230 455 100 200 400 600 μm
Length 1 2 1 2 1 2 1 2 1 2 1 2 1 2 m
Termination FC-FC or FC-SMA －

※ The model number of each optical fiber is determined by fiber type, core diameter, length and connector termination.

Example: UVFIBERX-230-1M-FC-SMA (UV type, fiber core diameter: 230 μm, length: 1 m, connector: FC-SMA)

* The EQ-99X-FC must use the above dedicated optical fibers.

Attempting to use any other optical fibers will cause optical fiber connector problems, damage to the lamphead and will affect performance.

*4 Although light at wavelengths shorter than 350 nm also passes through the broadband type optical fiber, the fiber transmittance within that wavelength range will drop within a short time. For applications that require UV output, we strongly recommend selecting the UV type optical fiber as they are optimized for that wavelength range.

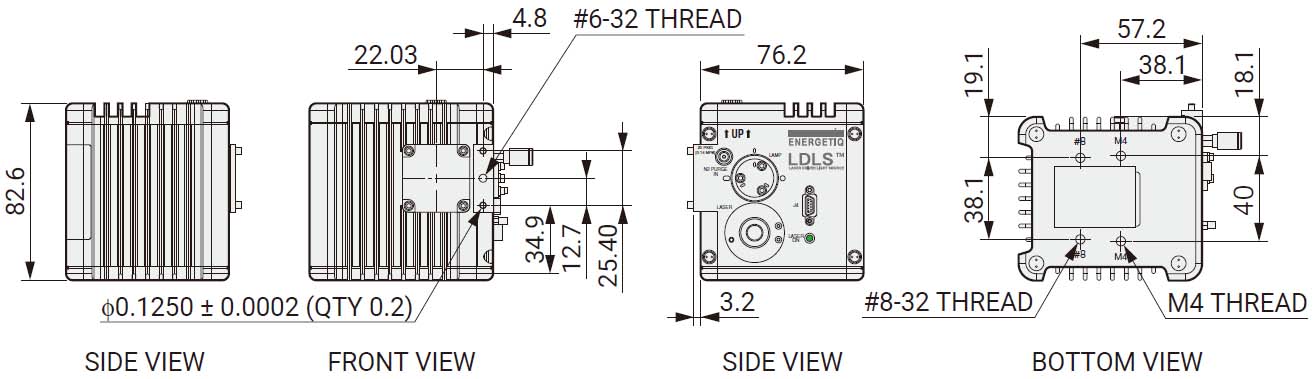

外形尺寸图（单位：mm）

Lamphead

Controller
